[Readers Insight] Are You Choosing the Right Quantifier Ion for Mass Spectrometry?
Author: Chromatography Mound
Introduction

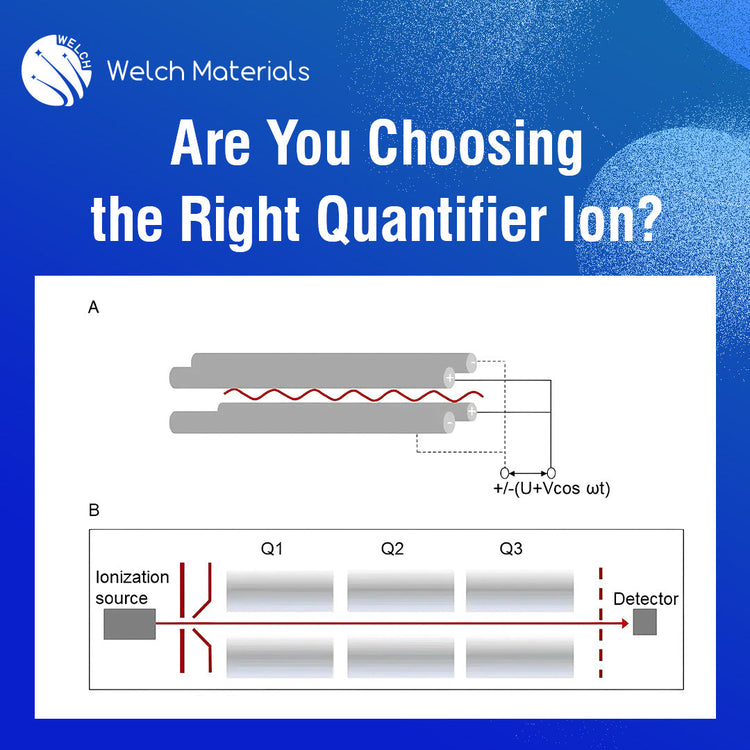

Triple quadrupole mass spectrometry, also known as tandem mass spectrometry, is one of the most widely used MS techniques in modern laboratories. When establishing a triple quadrupole MS method, an essential step is optimizing declustering voltage and collision energy for each fragment ion in multiple reaction monitoring (MRM) mode.
In both national standard methods and literature-based methods, the fragment ion with the highest response is typically chosen as the quantifier ion, while the fragment with the second-highest response is selected as a qualifier ion to help confirm the analyte identity. This secondary selection is important because triple quadrupole MS has relatively low mass resolution, and the additional qualifier ion helps reduce the risk of false positives.
In most cases, the selectivity of MS for a given compound is high enough that, when combined with retention time, qualitative identification is not a problem. As a result, analysts tend to focus primarily on selecting the quantifier ion.
Why the Highest-Response Ion
The rationale behind selecting the ion with the strongest response as the quantifier ion is straightforward—it maximizes method sensitivity and minimizes the limit of detection (LOD). On the surface, this logic is sound. But if we think more deeply, is the highest-response ion in an MRM transition always a fragment ion?
We typically optimize fragments in MRM to ensure the chosen quantifier ion is correctly attributed to the target compound, avoiding false positives. If two compounds with different molecular formulas produce fragment ions with the same m/z, the first quadrupole’s selection of the precursor ion ensures that the product ion’s origin is unambiguous.
However, in certain situations, the best quantifier ion may not actually be a fragment ion. This nuance becomes clearer when we examine a specific example.
Case Study: Benzidine
Benzidine, which contains an amino group, has high nucleophilicity and readily forms a [M+H]⁺ precursor ion (m/z 185) in MS. Under low collision energy, the m/z 185 ion shows a strong response—this is true for many compounds.
However, benzidine’s molecular structure is highly stable. Even when collision energy is increased, it produces few high-response fragments. Only at very high collision energies do significant fragment ions appear, namely m/z 157 and m/z 168.
Furthermore, the relative responses differ significantly, as m/z 185 (precursor ion) shows a response 190× higher than m/z 157 and 48× higher than m/z 168. If we were to choose m/z 168 as the quantifier ion, the method’s LOD would worsen by a factor of at least 48. This would likely cause most positive samples to go undetected, making accuracy a moot point.
In this case, even though using the precursor ion increases the risk of false positives, it is still the more appropriate choice to ensure detection.
No Absolute “Right” or “Wrong” Choice
In triple quadrupole MS, quantifier ion selection is not about right versus wrong—it is about appropriate versus inappropriate for the application.
If the analyte concentration in the sample is generally high enough, using m/z 168 may meet sensitivity requirements. However, for low-level samples, selecting m/z 185 as the quantifier ion is entirely reasonable. After all, for qualitative confirmation, retention time remains a strong indicator of compound identity, besides the m/z value.
