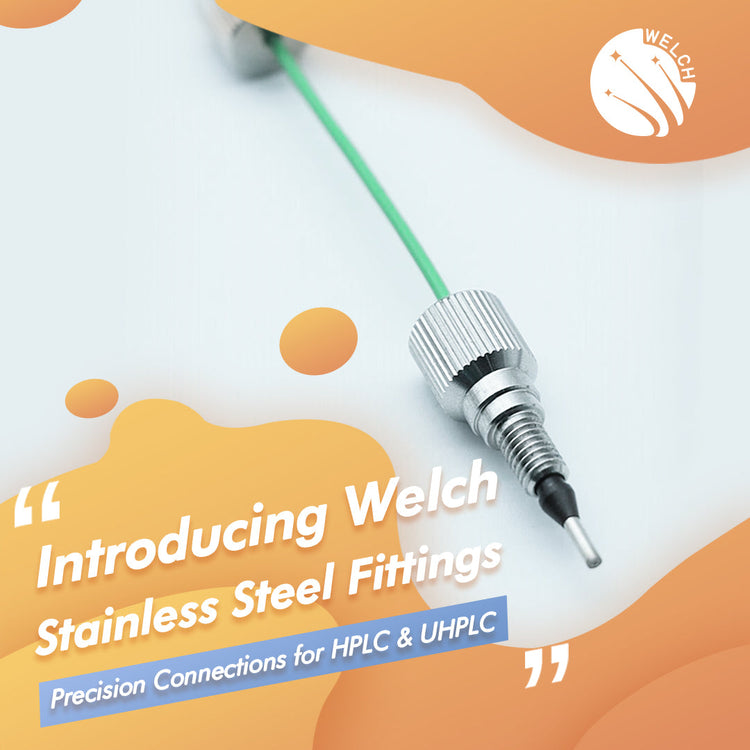

Introducing Welch Stainless Steel Fittings: Precision Connections for HPLC & UHPLC
Introduction
Welch Materials announces a new line of Stainless Steel Fittings engineered for the demands of modern high-performance liquid chromatography. Designed and manufactured to the exacting standards chromatographers expect, these fittings deliver rapid, tool-free installation, exceptional sealing reliability, and broad compatibility across analytical and ghost-catching column platforms.
Key Advantages
- Tool-free installation: Ergonomic, hand-tight design enables rapid connection and disconnection without tools, reducing setup time and simplifying routine maintenance and column changes.
- Superior sealing performance: The PEEK ferrule is engineered to deform predictably, forming a tight, leak-free seal against the mating surface to protect system integrity and sample integrity.
- Wide system compatibility: Standard 10-32 screw thread matches the majority of analytical and ghost-catching columns, making these fittings an ideal, low-risk replacement or spare for multi-vendor laboratories.
Technical Overview
- Thread: 10-32 screw thread
- Ferrule material: PEEK
- Housing material: Stainless steel
- Installation: Hand-tight
Ordering Information
0.18 mm inner diameter (for HPLC systems):
| P/N | Length | Max. Pressure | Compatible Systems |
| 00808-01311 | 105 mm | 40 MPa | Agilent 1100, 1200, 1260 I, 1260 II Shimadzu LC-20A, LC-30A, LC-2030 Thermo Fisher U3000, vanquish Waters 2695, e2695 |
| 00808-01312 | 200 mm | ||
| 00808-01315 | 350 mm | ||
| 00808-01313 | 500 mm | ||
| 00808-01324 | 600 mm |
0.12 mm inner diameter (for UHPLC systems):
| P/N | Length | Max. Pressure | Compatible Systems |
| 00808-01325 | 105 mm | 130 MPa | Agilent 1290 Thermo Fisher UHPLC Waters UPLC, H-Class, I-Class |
| 00808-01326 | 200 mm | ||
| 00808-01330 | 250 mm | ||
| 00808-01327 | 350 mm | ||
| 00808-01314 | 450 mm | ||
| 00808-01328 | 600 mm |
Stainless Steel Fitting for UHPLC Systems
Stainless Steel Fitting for HPLC Systems
Recommended Uses
- Routine analytical HPLC and UHPLC column connections.
- Setups of Welch Ghost-Buster Columns where low dead volume and reliable sealing are critical.
- Laboratories seeking fast turnaround during method changes, column replacement, or instrument maintenance.
- Multi-vendor instrument environments requiring a common, dependable fitting standard.
Availability & Inquiry
For quotations, lead times, and technical support, please contact us at info@welchmat.com or via our website. Our technical team can advise on selection for specific instruments, method conditions, and system configurations.
