Normal/Reversed Phase Columns

Normal/Reversed Phase Columns

Brand Show all Brand
Phase Show all Phase
USP Classification Show all USP Classification
Partical Size Show all Partical Size
Column ID Show all Column ID
Column Length Show all Column Length
Pore Size Show all Pore Size
Surface Area Show all Surface Area
pH Range Show all pH Range
Topsil C18, 3μm, 3.0×250mm
P/N: 00410-02025
$490.00 USD
$490.00 USD
Topsil C18 offers distinct selectivity compared to other C18 columns from Welch Materials. With lower column pressure and higher efficiency, it is an economical HPLC column choice.
Topsil C18, 3μm, 3.0×150mm
P/N: 00410-02023
$490.00 USD
$490.00 USD
Topsil C18 offers distinct selectivity compared to other C18 columns from Welch Materials. With lower column pressure and higher efficiency, it is an economical HPLC column choice.
Topsil C18, 3μm, 3.0×50mm
P/N: 00410-02019
$470.00 USD
$470.00 USD
Topsil C18 offers distinct selectivity compared to other C18 columns from Welch Materials. With lower column pressure and higher efficiency, it is an economical HPLC column choice.
Topsil C18, 3μm, 2.1×250mm
P/N: 00410-02016
$470.00 USD
$470.00 USD
Topsil C18 offers distinct selectivity compared to other C18 columns from Welch Materials. With lower column pressure and higher efficiency, it is an economical HPLC column choice.
Topsil C18, 3μm, 2.1×150mm
P/N: 00410-02014
$470.00 USD
$470.00 USD
Topsil C18 offers distinct selectivity compared to other C18 columns from Welch Materials. With lower column pressure and higher efficiency, it is an economical HPLC column choice.
Topsil C18, 3μm, 2.1×100mm
P/N: 00410-02012
$470.00 USD
$470.00 USD
Topsil C18 offers distinct selectivity compared to other C18 columns from Welch Materials. With lower column pressure and higher efficiency, it is an economical HPLC column choice.
Topsil C18, 3μm, 2.1×50mm
P/N: 00410-02010
$470.00 USD
$470.00 USD
Topsil C18 offers distinct selectivity compared to other C18 columns from Welch Materials. With lower column pressure and higher efficiency, it is an economical HPLC column choice.

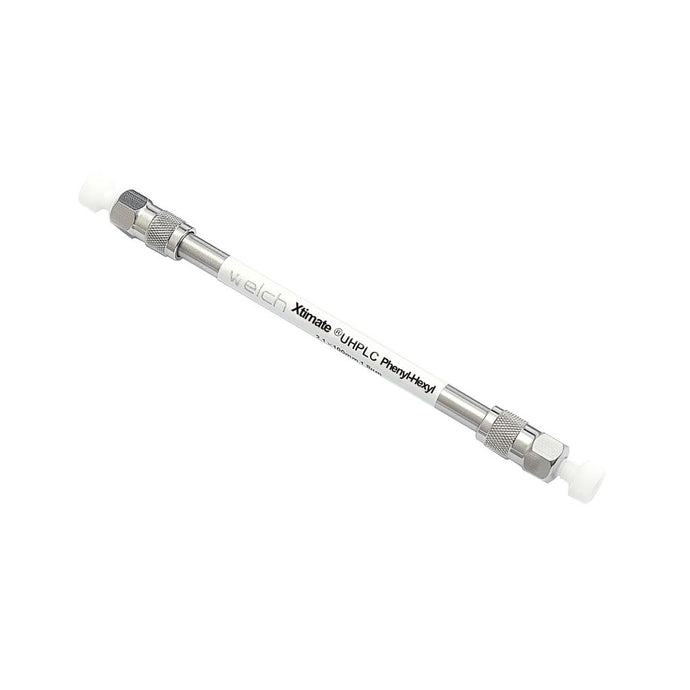

Xtimate UHPLC Phenyl-Hexyl, 1.8μm, 2.1×100mm,W-Port
P/N: 00104-01212
$1,050.00 USD
$1,050.00 USD
Welch UHPLC columns offer high efficiency and excellent batch-to-batch reproducibility, ensuring superior chromatographic data quality while reducing the need for repeated sample analysis and minim...
Xtimate UHPLC Phenyl-Hexyl, 1.8μm, 4.6×150mm
P/N: 00104-01041
$1,600.00 USD
$1,600.00 USD
Welch UHPLC columns offer high efficiency and excellent batch-to-batch reproducibility, ensuring superior chromatographic data quality while reducing the need for repeated sample analysis and minim...
Xtimate UHPLC Phenyl-Hexyl, 1.8μm, 4.6×50mm
P/N: 00104-01037
$1,300.00 USD
$1,300.00 USD
Welch UHPLC columns offer high efficiency and excellent batch-to-batch reproducibility, ensuring superior chromatographic data quality while reducing the need for repeated sample analysis and minim...
Xtimate UHPLC Phenyl-Hexyl, 1.8μm, 2.1×150mm
P/N: 00104-01014
$1,280.00 USD
$1,280.00 USD
Welch UHPLC columns offer high efficiency and excellent batch-to-batch reproducibility, ensuring superior chromatographic data quality while reducing the need for repeated sample analysis and minim...
Xtimate UHPLC Phenyl-Hexyl, 1.8μm, 2.1×100mm
P/N: 00104-01012
$1,050.00 USD
$1,050.00 USD
Welch UHPLC columns offer high efficiency and excellent batch-to-batch reproducibility, ensuring superior chromatographic data quality while reducing the need for repeated sample analysis and minim...
Xtimate UHPLC Phenyl-Hexyl, 1.8μm, 2.1×75mm
P/N: 00104-01011
$1,050.00 USD
$1,050.00 USD
Welch UHPLC columns offer high efficiency and excellent batch-to-batch reproducibility, ensuring superior chromatographic data quality while reducing the need for repeated sample analysis and minim...
Xtimate UHPLC Phenyl-Hexyl, 1.8μm, 2.1×50mm
P/N: 00104-01010
$880.00 USD
$880.00 USD
Welch UHPLC columns offer high efficiency and excellent batch-to-batch reproducibility, ensuring superior chromatographic data quality while reducing the need for repeated sample analysis and minim...

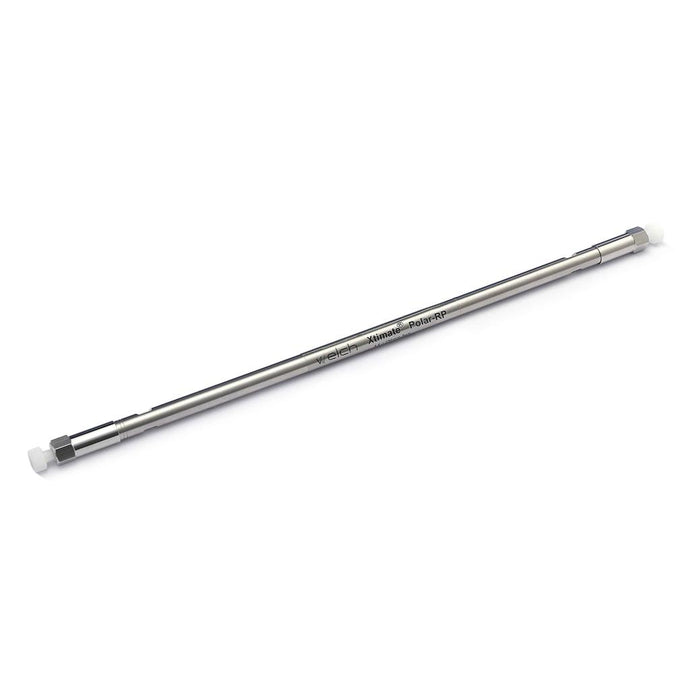

Xtimate Polar-RP, 10μm, 50×250mm, 120Å
P/N: 01621-31210
$23,240.00 USD
$23,240.00 USD
Welch preparative column uses the same packing materials as does analytical column, to ensure the best reproducibility of analysis and preparative scale. Special packing technique and stainless mod...
Xtimate Polar-RP, 10μm, 10×250mm, 120Å
P/N: 01621-31102
$2,350.00 USD
$2,350.00 USD
Welch preparative column uses the same packing materials as does analytical column, to ensure the best reproducibility of analysis and preparative scale. Special packing technique and stainless mod...
Xtimate Polar-RP, 5μm, 30×250mm, 120Å
P/N: 01621-21108
$15,200.00 USD
$15,200.00 USD
Welch preparative column uses the same packing materials as does analytical column, to ensure the best reproducibility of analysis and preparative scale. Special packing technique and stainless mod...
Xtimate Polar-RP, 5μm, 30×150mm, 120Å
P/N: 01621-21107
$8,990.00 USD
$8,990.00 USD
Welch preparative column uses the same packing materials as does analytical column, to ensure the best reproducibility of analysis and preparative scale. Special packing technique and stainless mod...
Xtimate Polar-RP, 5μm, 21.2×250mm, 120Å
P/N: 01621-21106
$6,320.00 USD
$6,320.00 USD
Welch preparative column uses the same packing materials as does analytical column, to ensure the best reproducibility of analysis and preparative scale. Special packing technique and stainless mod...
Xtimate Polar-RP, 5μm, 21.2×150mm, 120Å
P/N: 01621-21105
$4,050.00 USD
$4,050.00 USD
Welch preparative column uses the same packing materials as does analytical column, to ensure the best reproducibility of analysis and preparative scale. Special packing technique and stainless mod...
Xtimate Polar-RP, 5μm, 10×250mm, 120Å
P/N: 01621-21102
$2,740.00 USD
$2,740.00 USD
Welch preparative column uses the same packing materials as does analytical column, to ensure the best reproducibility of analysis and preparative scale. Special packing technique and stainless mod...
Xtimate C8, 10μm, 50×250mm, 120Å
P/N: 01620-31210
$16,600.00 USD
$16,600.00 USD
Welch preparative column uses the same packing materials as does analytical column, to ensure the best reproducibility of analysis and preparative scale. Special packing technique and stainless mod...
Xtimate C8, 10μm, 30×250mm, 120Å
P/N: 01620-31108
$8,140.00 USD
$8,140.00 USD
Welch preparative column uses the same packing materials as does analytical column, to ensure the best reproducibility of analysis and preparative scale. Special packing technique and stainless mod...
Xtimate C8, 10μm, 21.2×250mm, 120Å
P/N: 01620-31106
$3,840.00 USD
$3,840.00 USD
Welch preparative column uses the same packing materials as does analytical column, to ensure the best reproducibility of analysis and preparative scale. Special packing technique and stainless mod...

Column Specifications

C18 Columns

Series Column pH Range Max Temperature Max Pressure Tolerance
Ultisil Series Ultisil LP-C18 0.5-8.0 70 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5) 		40 MPa (≥5 μm)
60 MPa (<5 μm)
Ultisil LP-Aq 1.0-8.0
Ultisil XB-C18 2.0-8.0 60 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5)
Ultisil AQ-C18 2.0-8.0
Ultisil Plus C18 2.0-8.0
Ultisil Alk C18 2.0-8.0
Ultisil PAH 2.0-8.0
Ultisil Polar RP 2.0-8.0
Ultisil ODS-3 2.0-8.0
Ultisil XS-C18 2.0-8.0
Ultisil Plus LP-C18 0.5-8.0
Xtimate Series Xtimate C18 1.0-12.5 70 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5) 		40 MPa (≥5 μm)
60 MPa (<5 μm)
Xtimate Polar RP 1.0-12.5
Blossmate Series Blossmate C18 2.0-8.0 60 °C 40 MPa
Blossmate Aqs C18 2.0-8.0
Blossmate ST-C18 1.0-11.0
Topsil Series Topsil C18 2.0-8.0 60 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5) 		40 MPa
Welchrom Series Welchrom C18 2.0-8.0 60 °C 40 MPa
Welchrom Vantage C18 2.0-8.0 60 °C 40 MPa
Boltimate Series Boltimate C18 2.0-8.0 60 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5) 		60 MPa
Boltimate EXT-C18 1.5-12.0
Boltimate LP-C18 1.0-8.0

  C8, C4, C3, C1 and Phenyl Columns

Series Column pH Range Max Temperature Max Pressure Tolerance
Ultisil Series Ultisil XB-C8 2.0-8.0 60 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5) 		40 MPa (≥5 μm)
60 MPa (<5 μm)
Ultisil LP-C8 1.0-8.0 70 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5)
Ultisil F-C8 2.0-8.0 60 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5)
Ultisil Plus-C8 2.0-8.0
Ultisil XB-Phenyl 2.0-8.0
Ultisil Phenyl-Ether 2.0-8.0
Ultisil PFP 2.0-8.0
Ultisil Plus-phenyl 2.0-8.0
Ultisil XB-C4 2.0-8.0
Ultisil LP-C3 1.0-8.0 70 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5)
Ultisil XB-C30 2.0-8.0 60 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5)
Ultisil XB-C1 2.0-8.0
Ultisil XB-CN 2.0-8.0
Ultisil LP-CN 1.0-8.0
Xtimate Series Xtimate C8 1.0-12.5 70 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5) 		40 MPa (≥5 μm)
60 MPa (<5 μm)
Xtimate Phenyl-Hexyl 1.0-12.5
Xtimate C4 1.0-12.5
Blossmate Series Blossmate C4 2.0-8.0 60 °C 40 MPa
Blossmate Phenyl 2.0-8.0
Topsil Series Topsil C8 2.0-8.0 60 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5) 		40 MPa
Topsil phenyl-Hexyl 2.0-8.0
Topsil CN 2.0-8.0
Welchrom Series Welchrom C8 2.0-8.0 60 °C 40 MPa
Boltimate Series Boltimate C18 2.0-8.0 60 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5) 		60 MPa
Boltimate Phenyl-Hexyl 2.0-8.0
Boltimate EXT-C18 1.5-12
Boltimate EXT-PFP 1.5-10
Boltimate HILIC 2.0-8.0
Boltimate LP-C18 1.0-8.0
Boltimate C8 2.0-8.0
Boltimate Phenyl 2.0-8.0

  Normal-Phase Columns

Series Column pH Range Max Temperature Max Pressure Tolerance
Ultisil Series Ultisil SiO2 2.0-8.0 70 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5) 		40 MPa (≥5 μm)
60 MPa (<5 μm)
Ultisil Diol 2.0-8.0
Ultisil XB-NH2 2.0-8.0
Ultisil XB-CN 2.0-8.0 60 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5)
Topsil Series Topsil Silica 2.0-8.0 60 °C (mobile phase pH ≤6.5),
40 °C (mobile phase pH >6.5) 		40 MPa
Topsil NH2 2.0-8.0
